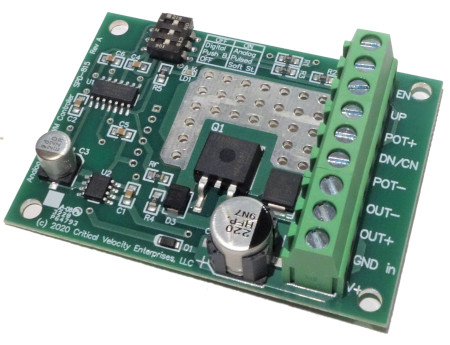

15 Amp Analog/Digital PWM Motor Speed Controller w/ Soft Start Option
 |
| Quantity Discount |
Unit Price |
| List Price: | $65.95 | 1 |
$53.95 | | 10 | $ 52.95 | |
| 50 | $ 50.95 | |
| 100 | $ 49.95 |
 |
|
|
|
|
This Analog / Digital PWM Controller gives you the most flexibility for your application. Give your project a high-tech feel with push button speed control. It can also be used as a low voltage light dimmer for halogen or dimmable LED lamps, or for controlling heaters and irons.
4 Ways to Control:
- Analog:
- Potentiometer
- 0V - 5V analog voltage level
- Digital Mode:
- Push Buttons - UP and DOWN buttons to control speed
- Logic Mode - pulse the UP or DOWN lines to change speed.
Additional Features:
- Analog or Digital Modes selectable via DIP Switches
- Selectable Soft Start mode reduces stress on mechanics and power supplies
- Ultra-high efficiency MOSFET design for cool operation without bulky heatsinks
- 5.5 - 36 VDC operation>
- Digital filtering allows smooth control even with noisy inputs
- Logic Controller Enable input
Specifications:
- 15 Amps continuous current
- 5.5 - 36 VDC operation
- PWM Range: 0% - 100%
- Single direction (no reverse)
Connections:
- Terminal blocks for signal and power connections
Technical Documents:
 Datasheet (PDF)
Dimensions:
2.0 x 2.7 x 0.7 inches tall.
For a comparison of motor control features, check out the parametric selection guide.
|
