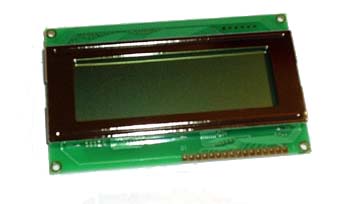

20 x 4 Character LCD Screen, HD44780 interface


Quantity Discount     Unit Price
1   $8.95
   P/N: CVLCD-20041

   In Stock.



  • 20 x 4 character reflective LCD screen
  • 14-pin Hitachi HD 44780 Parallel Interface
  • Manufactured by Datavision
  • Note: This is an extended temperature LCD which requires a negative drive voltage between -1 to -5 volts.

Interface:

Pin Descriptions
1 Ground
2 Vcc (5V)
3 LCD Drive Voltage
4 "R/S" Instruction/Register Select
5 "R/W" Read/Write LCD Registers
6 "E" Clock
7 Data Bit 0
8 Data Bit 1
9 Data Bit 2
10 Data Bit 3
11 Data Bit 4
12 Data Bit 5
13 Data Bit 6
14 Data Bit 7

Dimensions:

3.88 (L) x 2.38 (W) x 0.38 (H) inches

Helpful Info:

HD44780 Reference:

http://www.myke.com/lcd.htm (external link)
